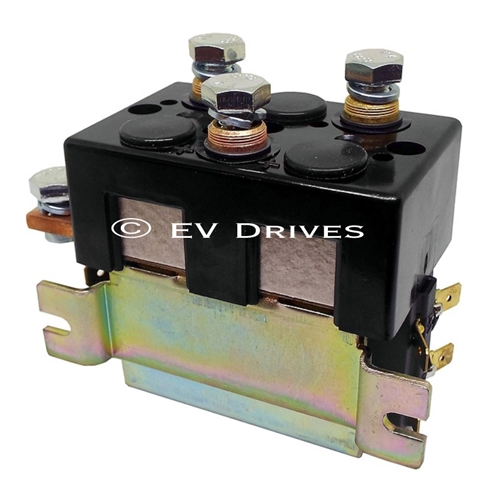

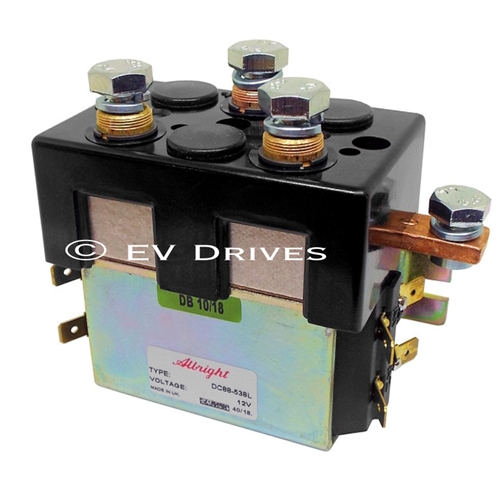

Original Albright DC88-538L Reversing Contactor 12 Volt (DC88-454L Equivalent)
Original Albright DC88-538L Reversing Contactor 12 Volt (DC88-454L Equivalent) - Image 2
Original Albright DC88-538L Reversing Contactor 12 Volt (DC88-454L Equivalent) - Image 3
Original Albright DC88-538L Reversing Contactor 12 Volt (DC88-454L Equivalent) - Image 4

Original Albright DC88-538L Reversing Contactor 12 Volt (DC88-454L Equivalent)

$165.00

Out of stock

SKU: SOL-DC88-538L Category:

Description

The DC88 series of contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, and such like. They have double breaking contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Specifications

Device Type DC88-538L Monoblock SPDT NO
Protection Dust Shields
Voltage 12V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 7
Pull-In Voltage (V) 8.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 20.57
Typical Pull-In Time 20ms
Typical Voltage Drop per pole
across New Contacts at 100A 		Normally Open: Less than 40mV
Normally Closed: Less than 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 2.5 lbs / 1.04kg
Application Interrupted – Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A

OEM Cross Reference:
DC88-454L

Additional information

Weight 3 lbs
