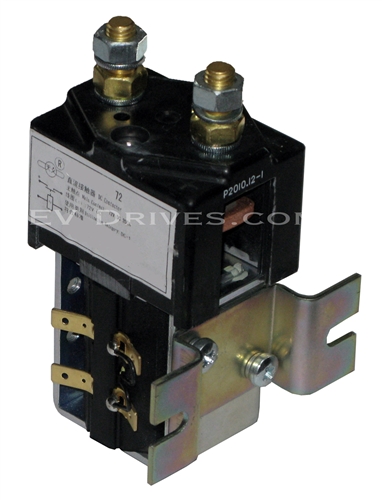

JCA-200D Main Contactor 72V (SW200 Style)

Description

• 72 Volts
• Magnetic blow outs
• Double-make or double-break contacts
• These series are one-pole normally open
• Fork lift truck
• Motor vehicles
• Engine applications
• Voltage: 72 volt coil
• Current: 200 amps continuous, 800 amps surge (4 seconds)
• Contacts: Silver oxide
• Terminals: 5/16″ main lug, 1/4″ spade for the coil

Alltrax Part Number: SOL-72V-200A
