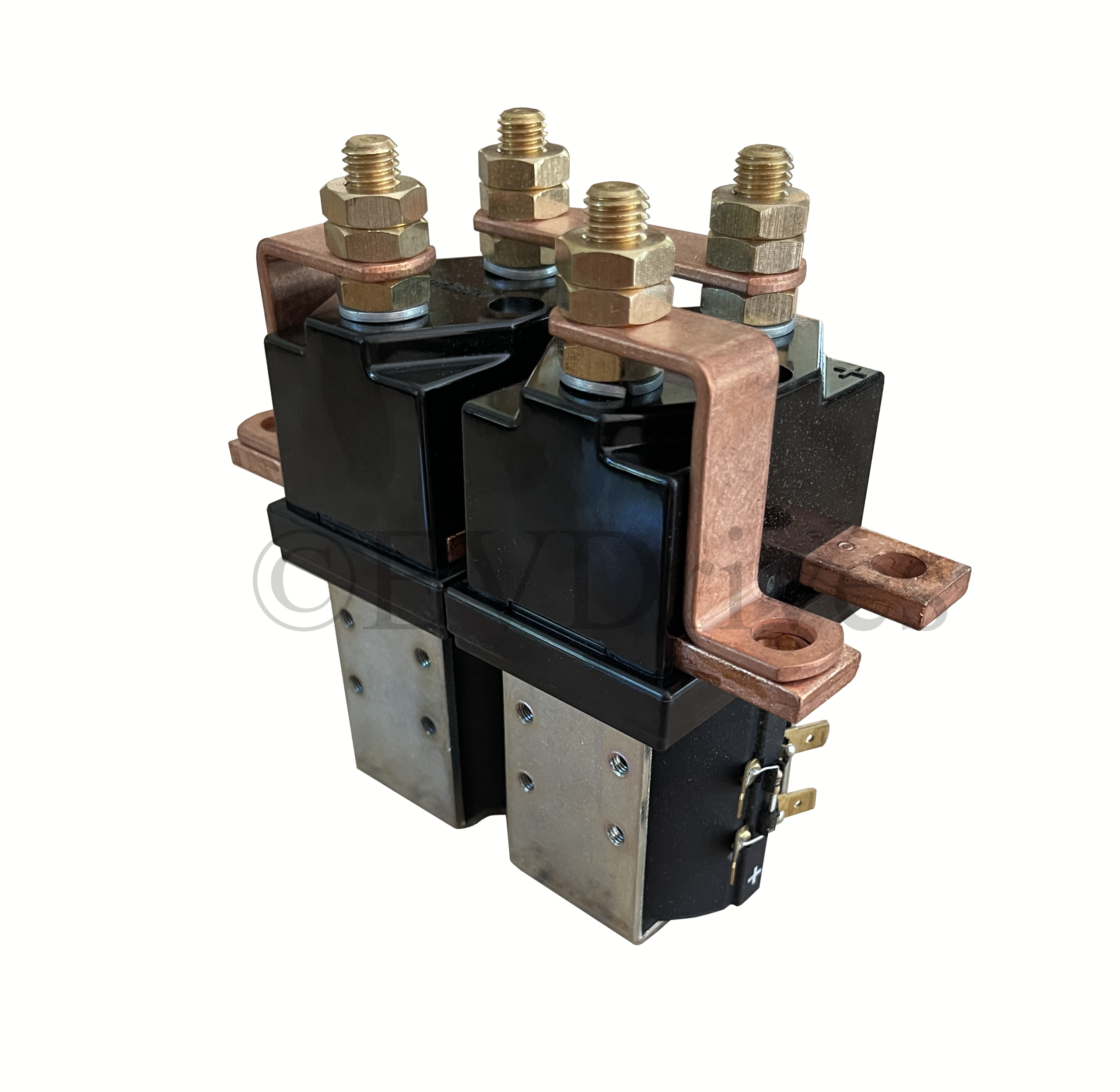

Albright SW202N-246 (SW202N-138) Reversing Contactor 24V for Bow Thrusters

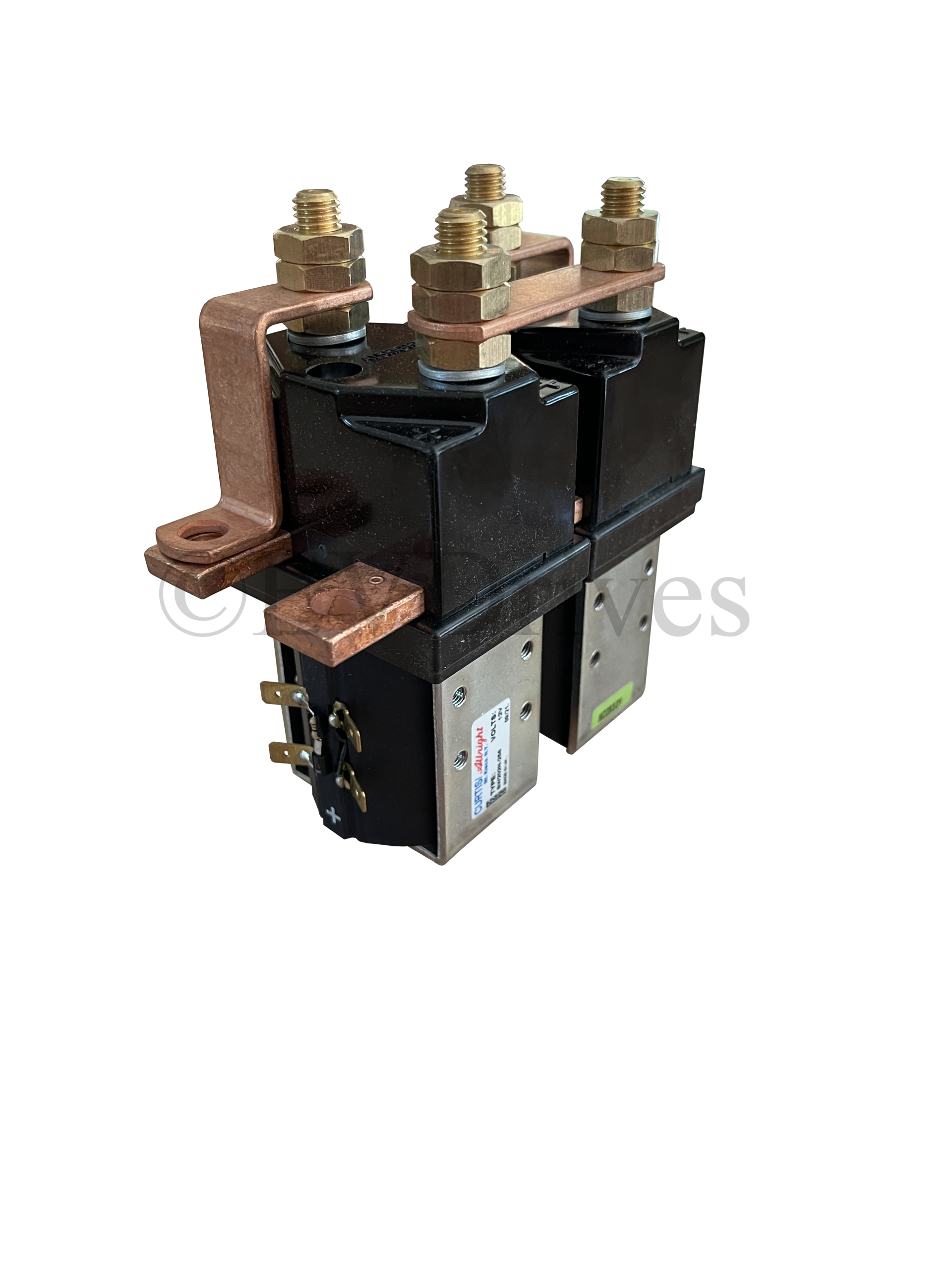

Albright SW202N-246 (SW202N-138) Reversing Contactor 24V for Bow Thrusters - Image 2
Albright SW202N-246 (SW202N-138) Reversing Contactor 24V for Bow Thrusters - Image 3

Albright SW202N-246 (SW202N-138) Reversing Contactor 24V for Bow Thrusters

$460.00

SKU: SOL-SW202N-246 Category:

Description

The SW202N-246 series is equivalent to the SW202N-138.

  • Rated Current: 400 Amps
  • Voltage Coil Options: 24V
  • Double Pole
  • Coil Resistance: 18 Ohms
  • Pull In Voltage: 14.5V Maximum
  • Drop Out Voltage: 6.0V Maximum
  • Coil Power Dissipation: 32.0 Watt
  • Lug connector size: 3/8″, 1/4″ spade for the coil
  • Weight: 7.0 lbs

Additional information

Weight 7 lbs
